Item specifics
  • Brand Name: G-NiceRF
  • Model Number: SV610 Kit
  • Operating voltage range: 2.8~6.5V
  • Reveive current: 25mA
  • Emission current: 95mA @ 25dBm
  • Sleep current: <5uA
  • Interface type: TTL
  • Transmit power range: -1~20dBm
  • Receiving sensitivity: -121dBm
  • Size: 26.8*16*2.4
  • Transceiver distance: 1.4km
Product Description


SV610 433MHz RF Transceiver Module Kit ( 1pc SV610 RF Module+1pc TTL USB Bridge Board+1pc Spring Antenna)




Description:
SV610 is an Industrial class& highly-integrated RF transceiver module,which adopts the high performance Si4432 from Silicon Labs and industrial micro-controller.SV610 has a standard TTL interface,SV610 has good sensitivity and 100mW output power to achieve long RF range and reliable RF communication.To avoid the interference,SV610 provides 40 frequency channels and configurable Net ID.SV610 is flexible but easy to use,it comes with many parameters,such as: frequency,data rate,output power,Net ID,Node ID.Users can configure the parameters through PC or customer\'s own device.


Feature:
1400 meters transmission distance @ 2.4K rate when
Working frequency options:433/470/868/915 MHz
40 channels
4 bytes network ID
2 bytes node ID
Multiple data transfer rate
RSSI output field strength
GFSK modulation mode
automatically antenna matching and bi-directional switch control
Support Serial port parameter setting
sensitivity up to -121 dBm
Maximum output power: 100 mW
Operating Voltage 3.3 ~ 7.0V


Application:

Remote telemetry
Auto meter reading
Security Systems
Data logger
home automation telemetry
personal data records
wireless data communications
building automation and security
Healthy Monitoring
wireless PC peripherals
Access Control System
robot control


Product Picture:

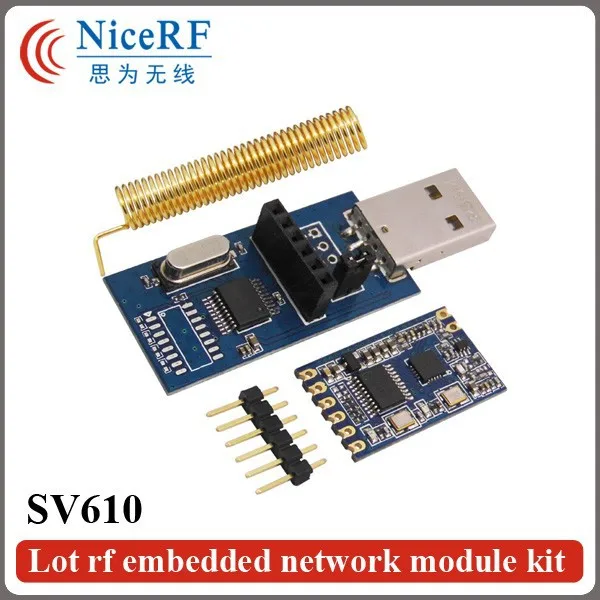

SV610-Lot rf embedded network module kit-3

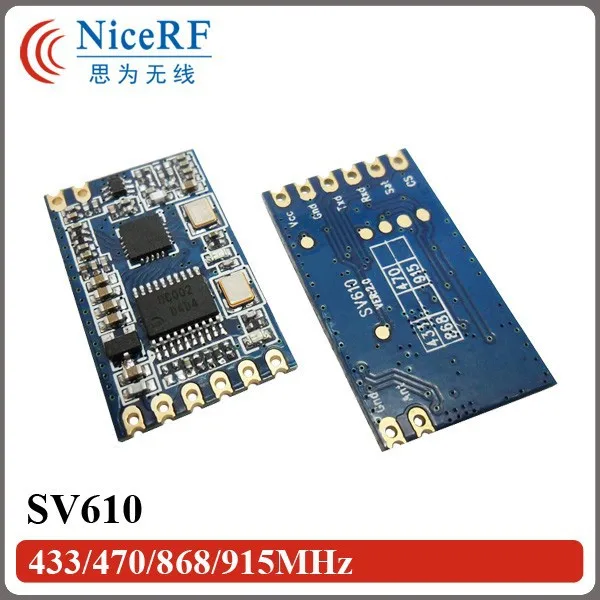

SV610-433 470 868 915MHz

Order List

Package include:
1pc SV610 TTL 433MHz modules,
1pc Spring antenna
1pc TTL USB Brigde board



Parameter:
5



Application circuit
The typical schematic circuit is as below:Note:The ground pin of the module and device should be connected together,



6



Pinout



7



Mechanical dimension



Mechanical dimension





Accessories:

Antenna: It is an important part of communication system. Its performance directly affect the indicators of   communication system.This module SV610 requires the  antenna impedance as 50 ohm. To make the module in the best working status, we recommend that users use our company\'s standard antenna!



8



USB Converter Board: Modules need to match relevant parameter,transmit data...etc, with PC.(you can choose configuration mode by wire jumper). We have the matching USB connector and TTL level switch board for users to conveniently communicate with PC.

                  9
